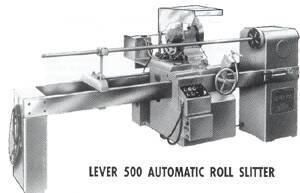

The Lever 500
Industrial Pleating Machines, Slitters, and Winders in Irvington, NJ
Features:
- Will handle up to 14” diameter roll
- Shaft length –85”- (distance from chuck face to shaft support)
- Spray mist system
- 4 speed gear box for knife
- Standard external 4 pin chuck
- 220 volt 3 phase
- Locked knife for material requiring it
- Attached grindstone and diamond dressing tool with separate motor.
- Adjustable automatic dwell time control
- Separate reversible heavy duty chuck drive with variable speed
- adjustment
- Clear polycarbonate knife guard automatically stops machine when lifted
- Machine equipped with both automatic and manual mode setting
- Completely enclosed easy-to-adjust spacer can be set to ultra-fine tolerances. Knife carraige locked into pre-set spacing with electro-magnetic brakes that will not slip or cause wear on rails. Instant change from automatic to semi-automatic or manual operation. For rolls up to 14" outside diameter.
Call (973) 445-9699 or email philip@imperialsewingmachine.com for prices and more information.
